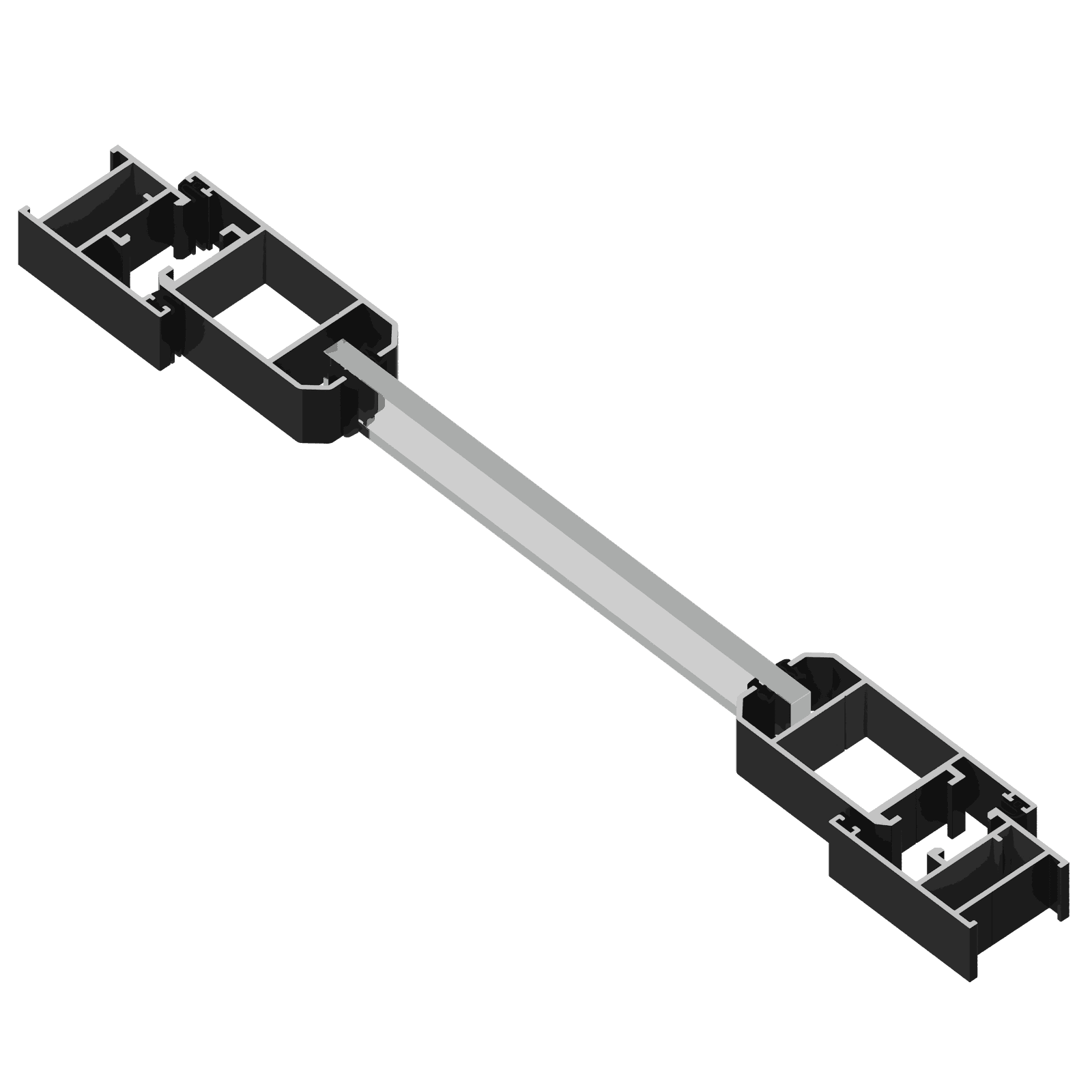

Cross Section
System Specification
| Profile Alloy | 6063 |
|---|---|
| Glass Thickness | 5,6 |
| Max Shutter Height* | 1800 |
| Max Shutter Width* | 750 |
| Max Shutter Weight | 750kg |
| Multi Point Locking | Yes |
| Single Point Locking | Yes |
| Mosquito Mesh Solution | Pleated / Roll Up |
| Hinges | Butt Hinges / Friction Stay Hinges |
| Top Hung | Yes |
Section Detail
| Frame Height | 46 |
|---|---|
| Frame Width 2 Track | 30 |
| Frame Width 3 Track | 70 |

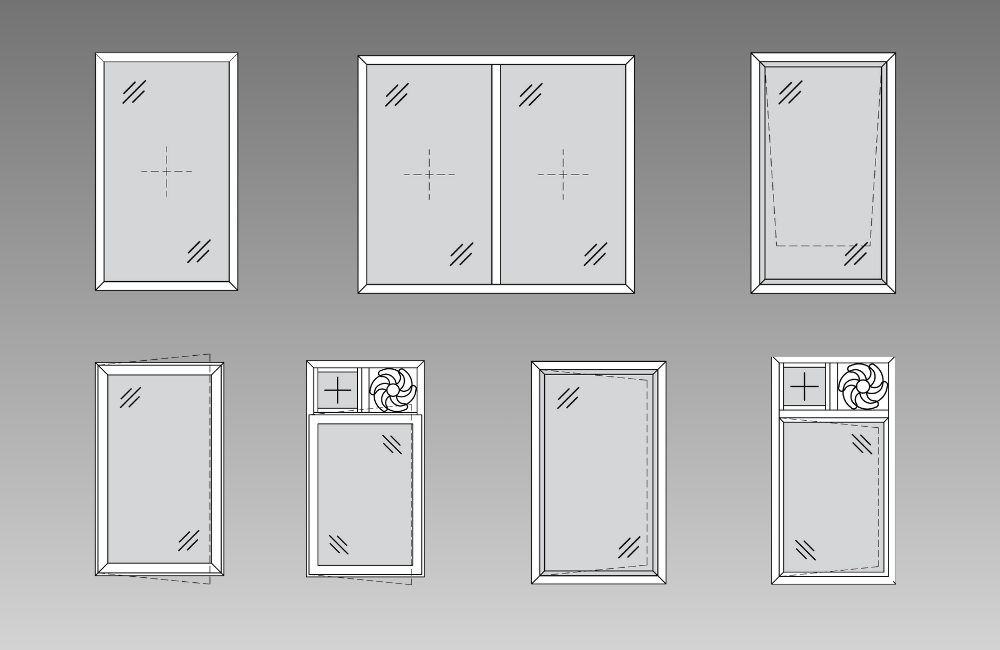

Typologies
