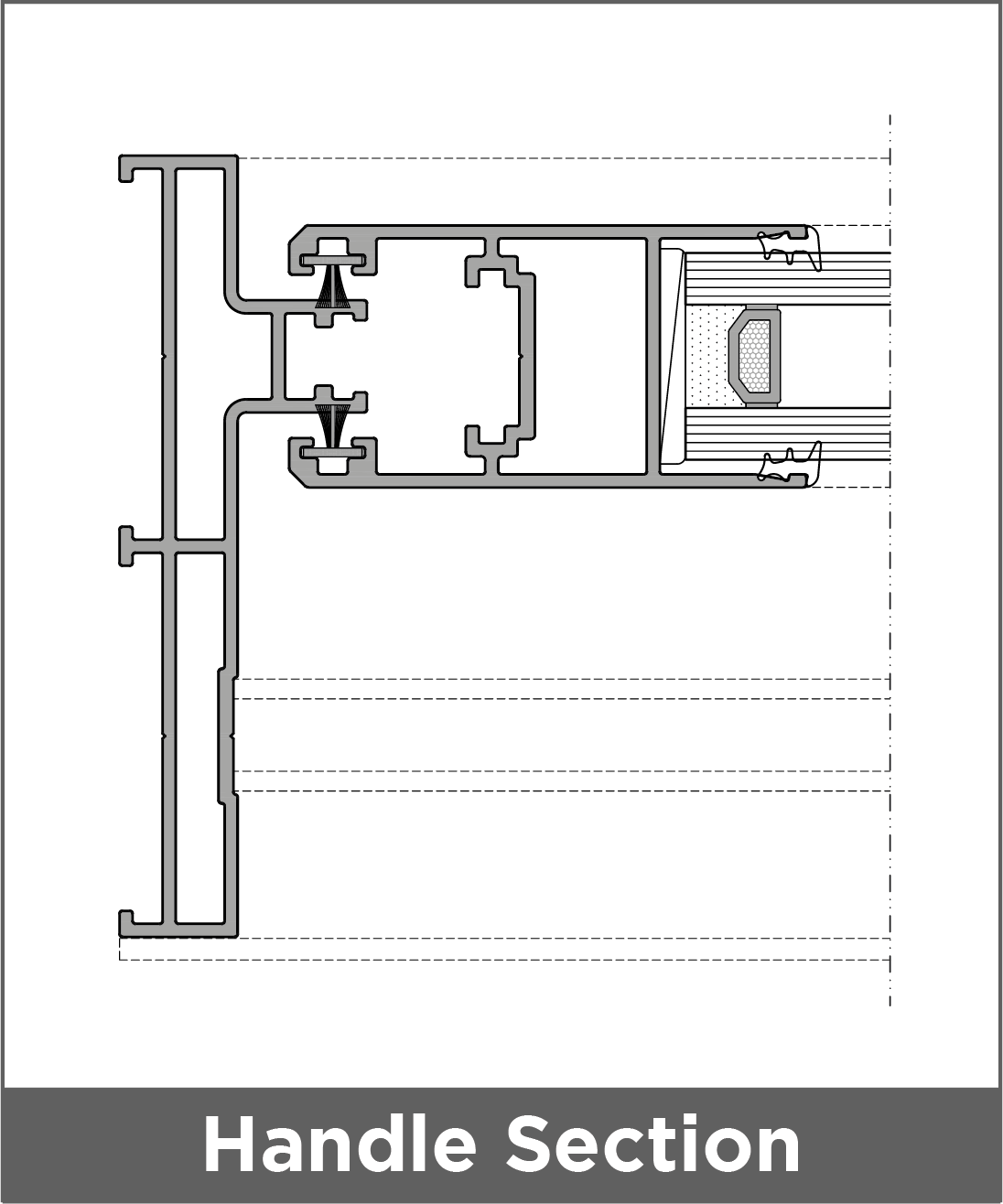

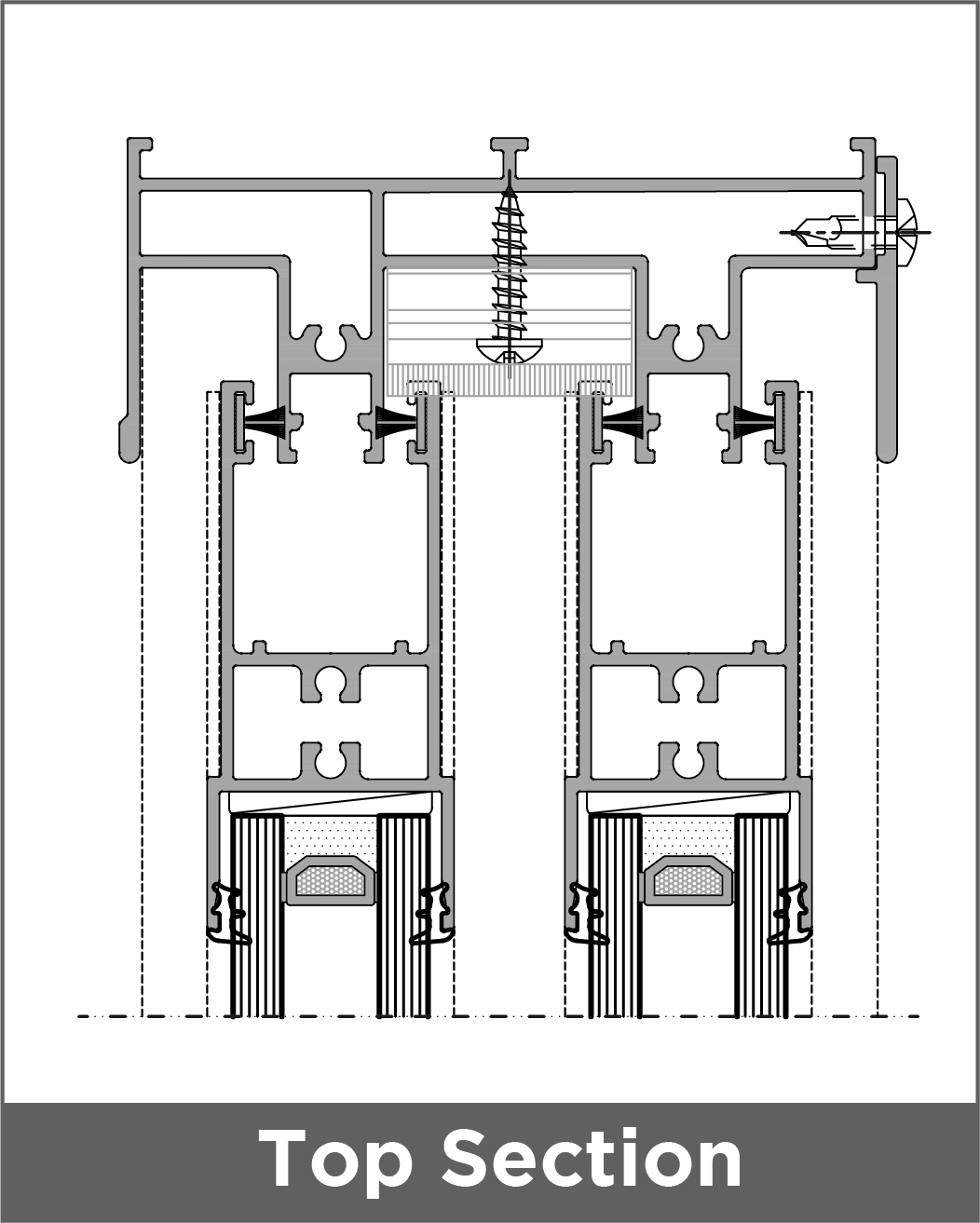

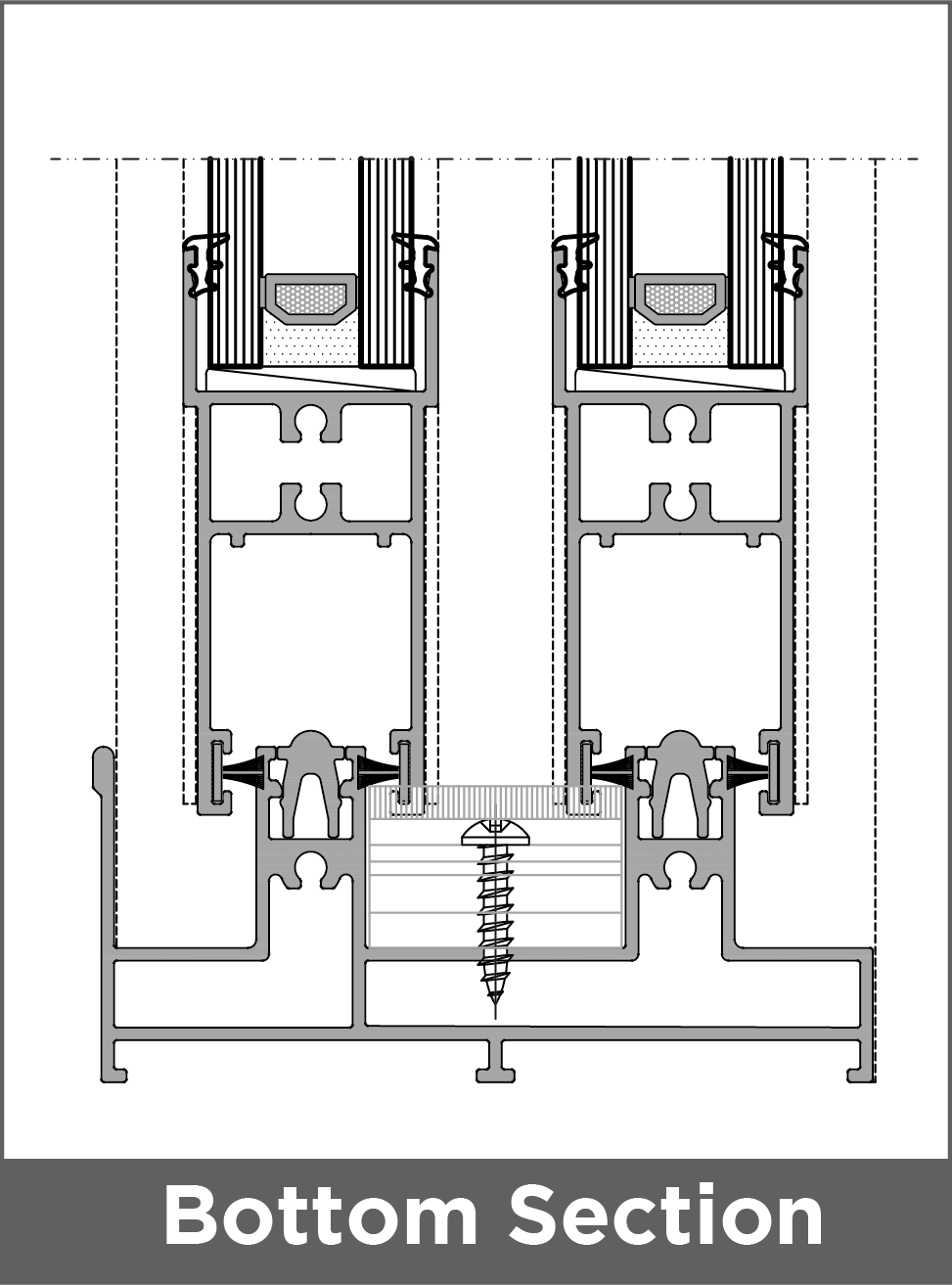

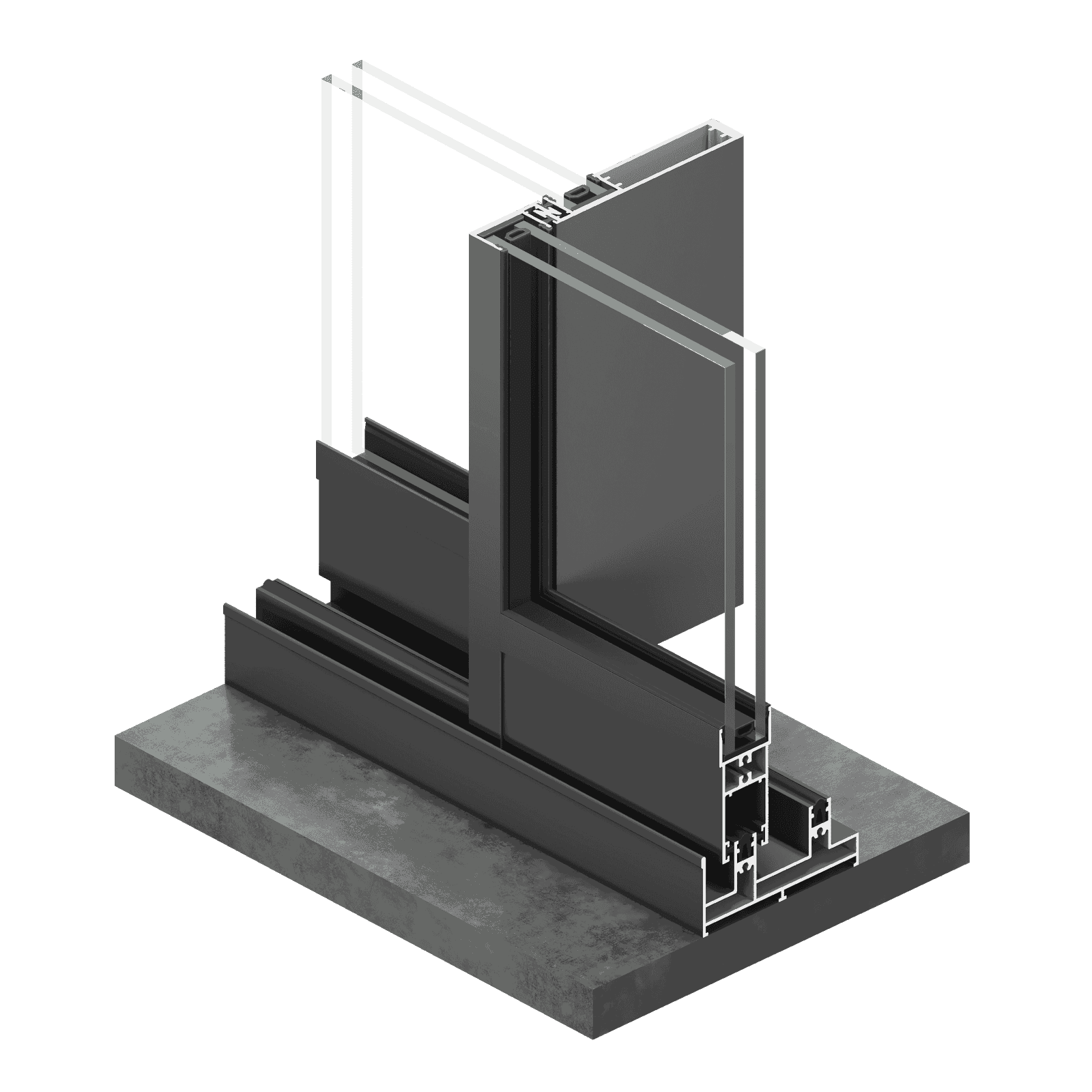

Cross Section
System Specification
| Profile Alloy | 6063 |
|---|---|
| Glass Thickness | 5, 6, 8, 10, 23, 24 |
| Max Shutter Height* | 2700 |
| Max Shutter Weight | 160kg |
| Multi Locking | Yes |
| Mosquito Mesh Solution | Fiber / SS Mesh |
| Hidden Bottom | No |
| Corner Opening | No |
| Roller Rail | Aluminium |
| Integrated Railing | Yes |
Section Detail
| Frame Height | 40 |
|---|---|
| Frame Width 2 Track | 93 |
| Frame Width 3 Track | 137 |
| Interlock Sightline | 20 |
| Center Opening Profile Width | 61 |

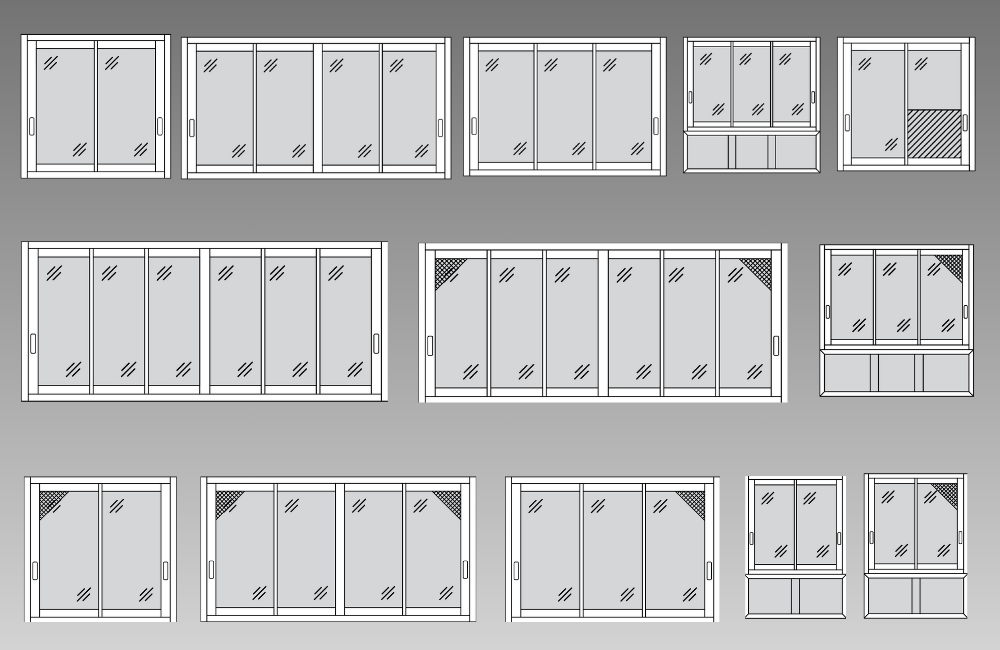

Typologies
