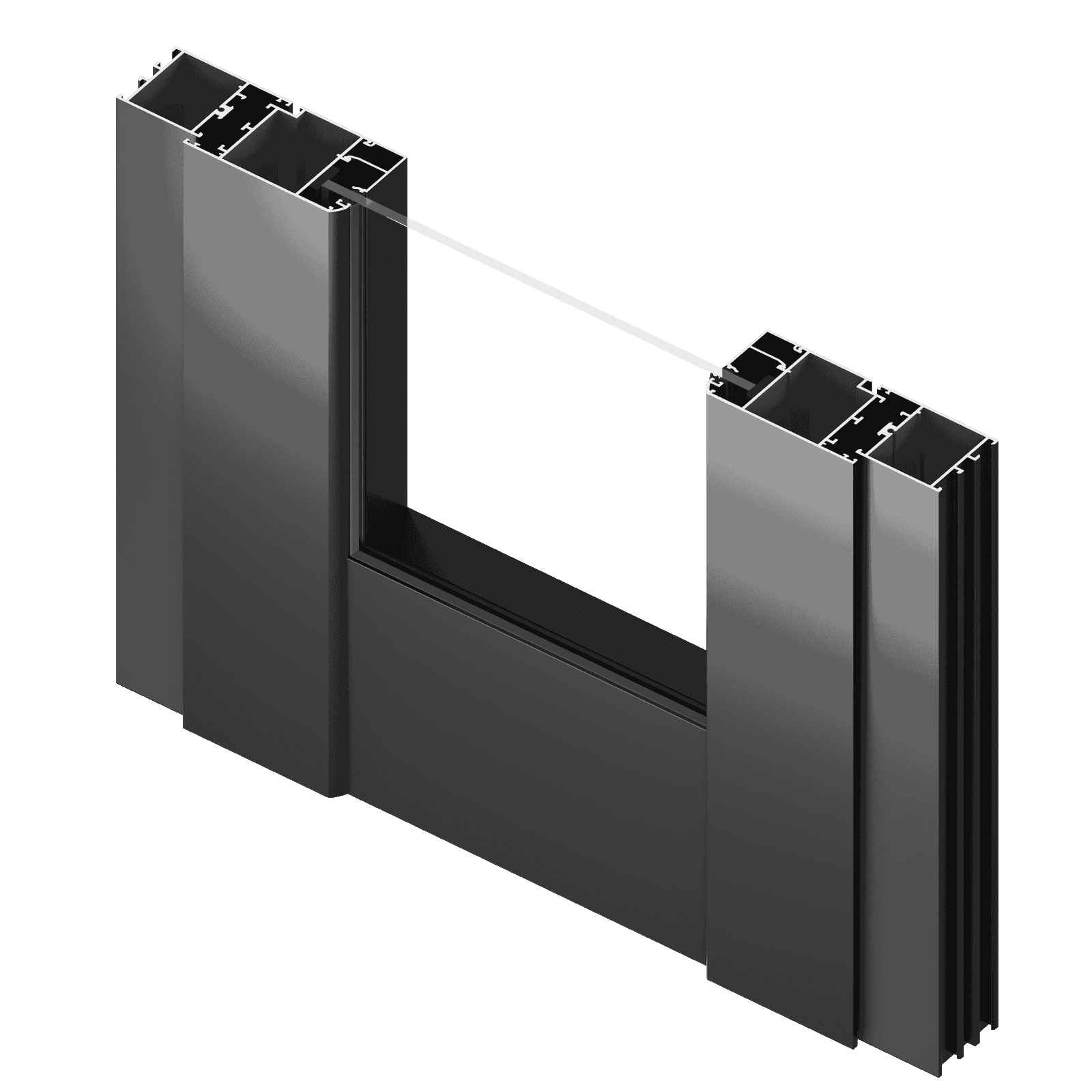

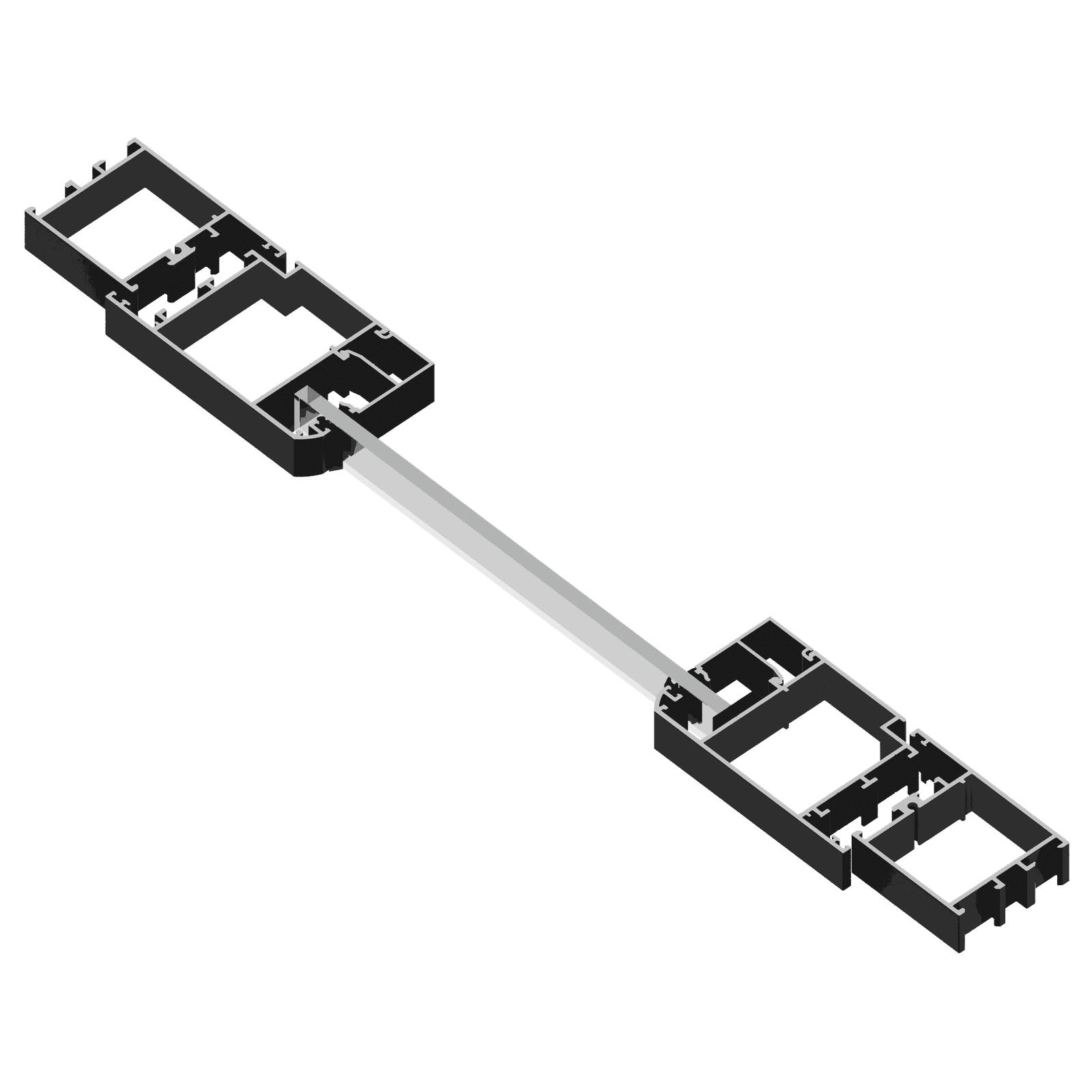

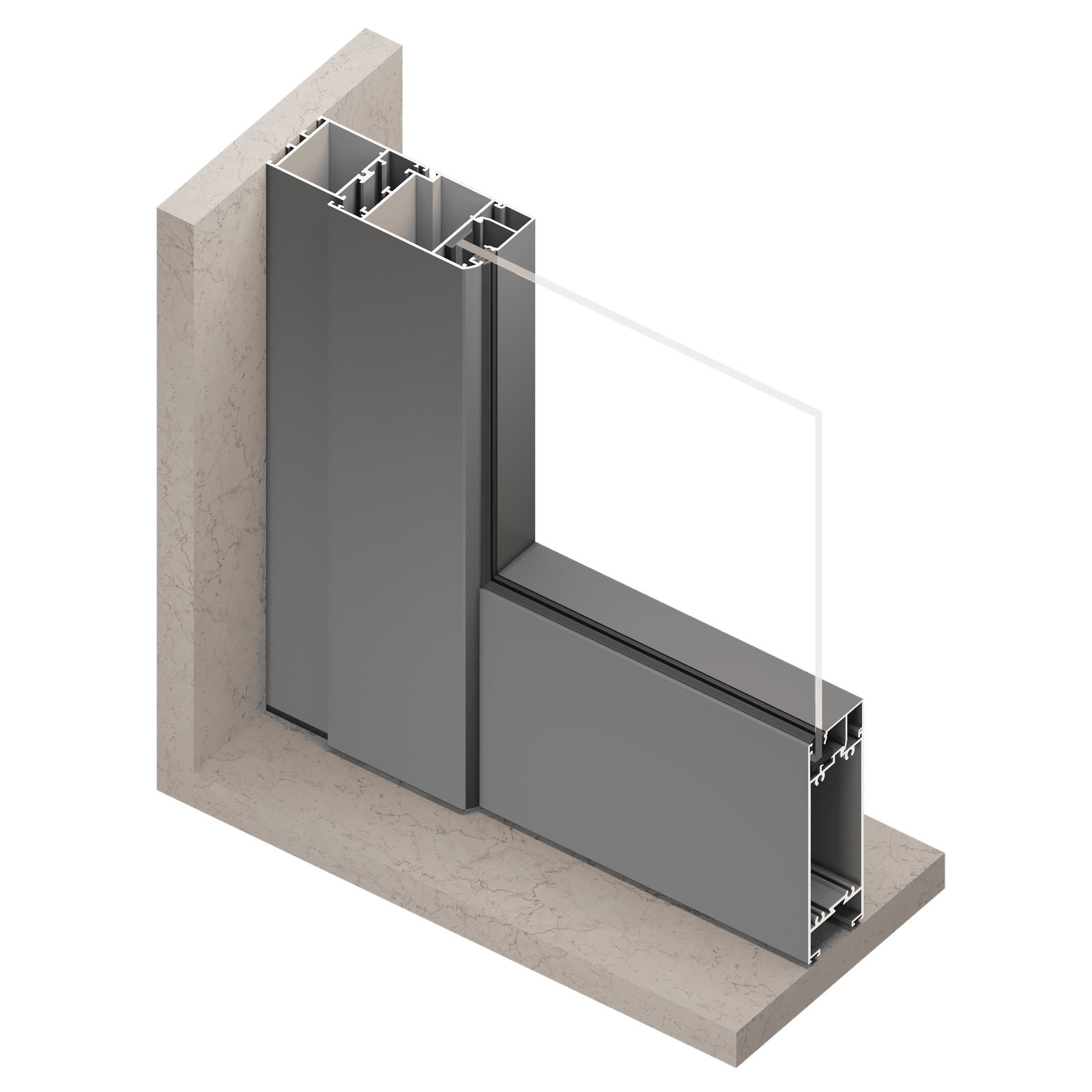

Cross Section
System Specification
| Profile Alloy | 6063 |
|---|---|
| Glass Thickness | 6, 8, 10, 11.52, 12, 13.52, 15.52, 17.52, 20, 24, 28, 30 |
| Max Shutter Height* | 3600 |
| Max Shutter Weight* | 1200 |
| Max Shutter Weight | 180kg |
| Multi Point Locking | Yes |
| Single Point Locking | Yes |
| Mosquito Mesh Solution | Pleated / Roll Up |
| Hinges | Sleek Heavy Duty Butt Hinges |
| Cylinder With Knob | Yes |
| Concealed Door Closure | Yes |
Section Detail
| Frame Height (mm) | 46/73 |
|---|---|
| Frame Width (mm) | 50 |
| Shutter Width (mm) | 97 |
| Kick Plate Height (mm) | 154 |

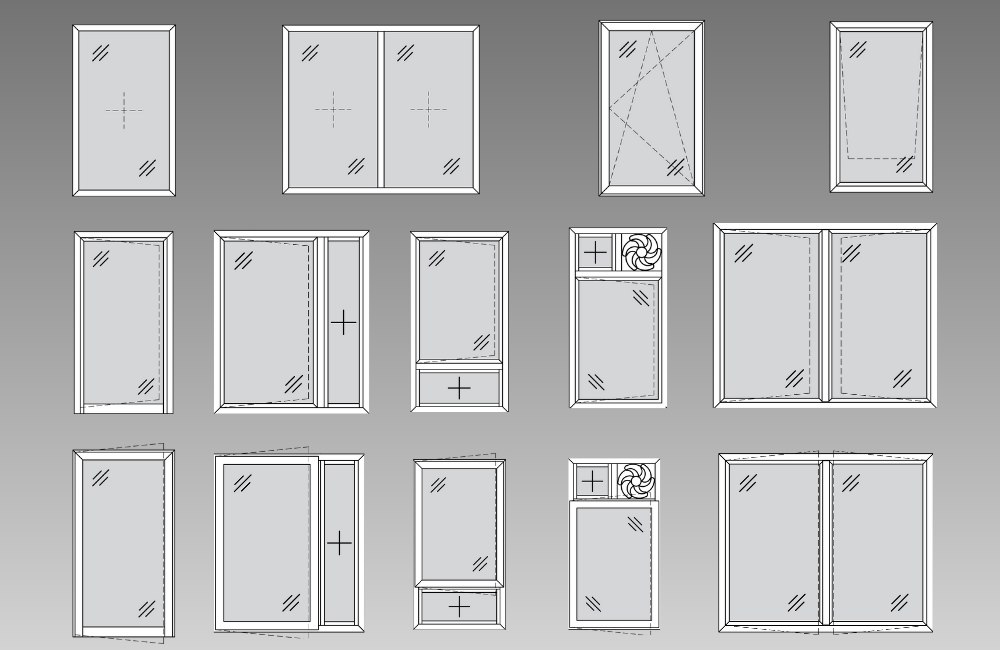

Typologies
